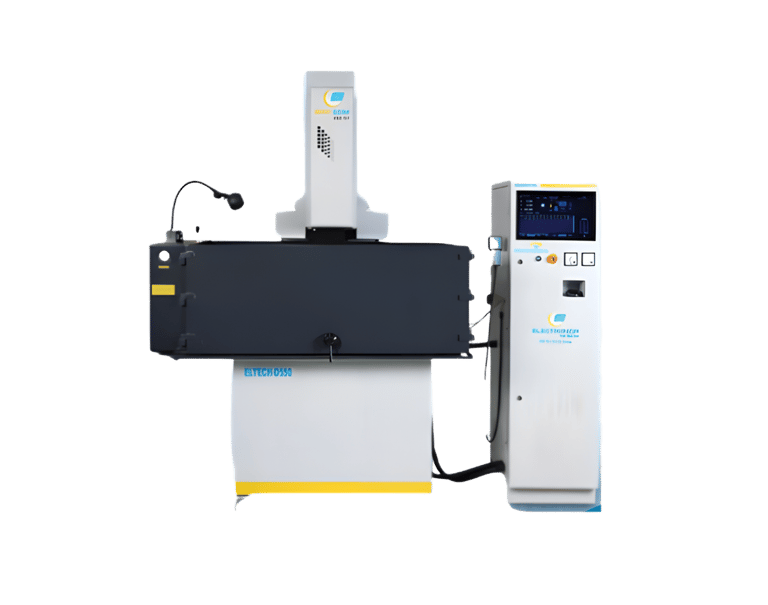

EDM Sparking Machine
Precision Beyond Limits

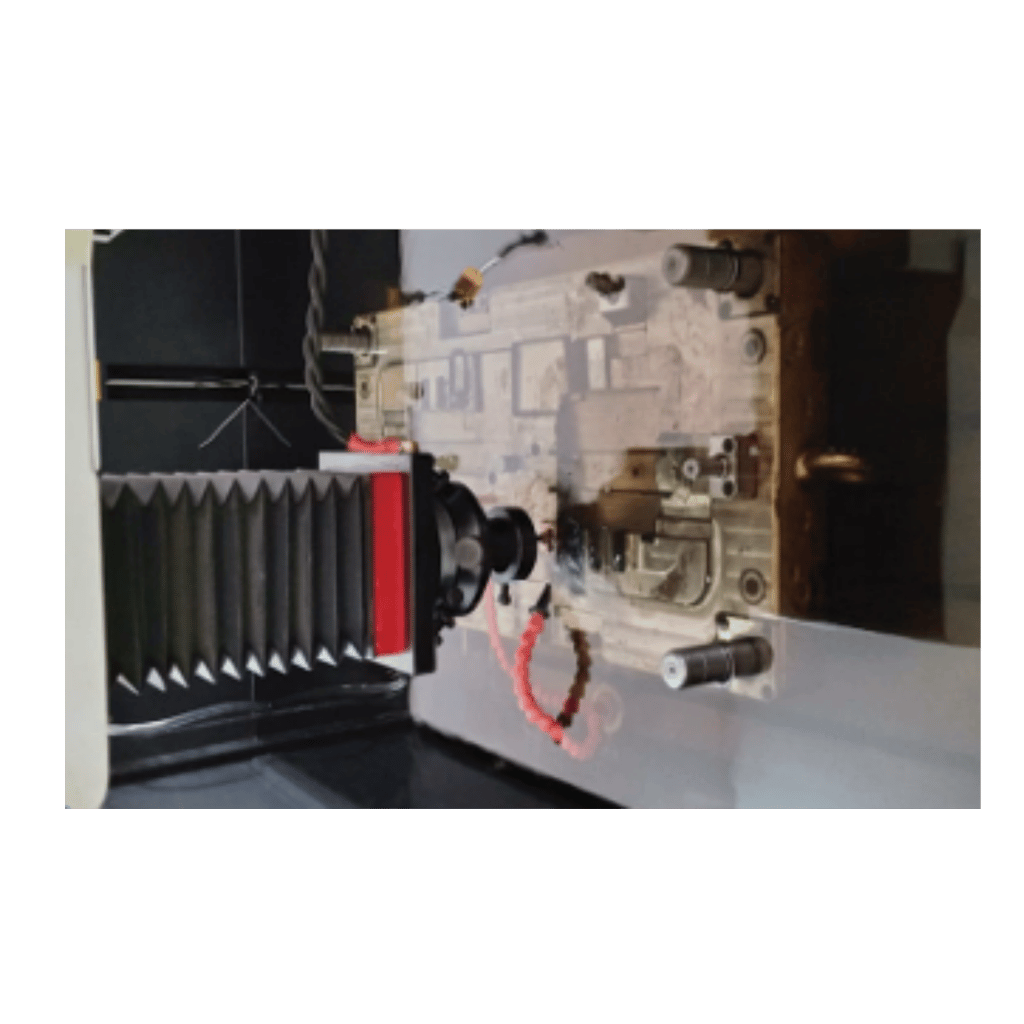

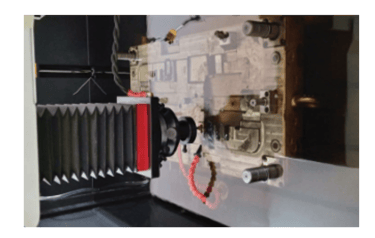

Our EDM (Electrical Discharge Machining) capability enables the production of highly precise mould components with intricate details that cannot be achieved through conventional machining methods. This process is essential for creating complex cavities, sharp corners, and fine geometries required in high-performance tooling.
Using controlled electrical discharges, EDM removes material with extreme accuracy, ensuring superior detailing and tight tolerances. This allows us to achieve complex designs without compromising structural integrity.
Key Capabilities
Creation of sharp edges and fine details
High-accuracy cavity formation
Capability to machine hard materials
Ideal for complex and high-tolerance components
Technical Specifications
Work Tank Capacity: 660 L
Maximum Load on Table: 2,000 kg
Work Tank Dimensions: 1,420 × 850 × 525 mm
Table Travel (X × Y): 1,000 × 500 mm
Z-Axis Travel: 250 mm
Machine Weight: 2,000 kg
Applications

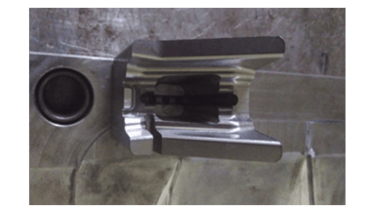

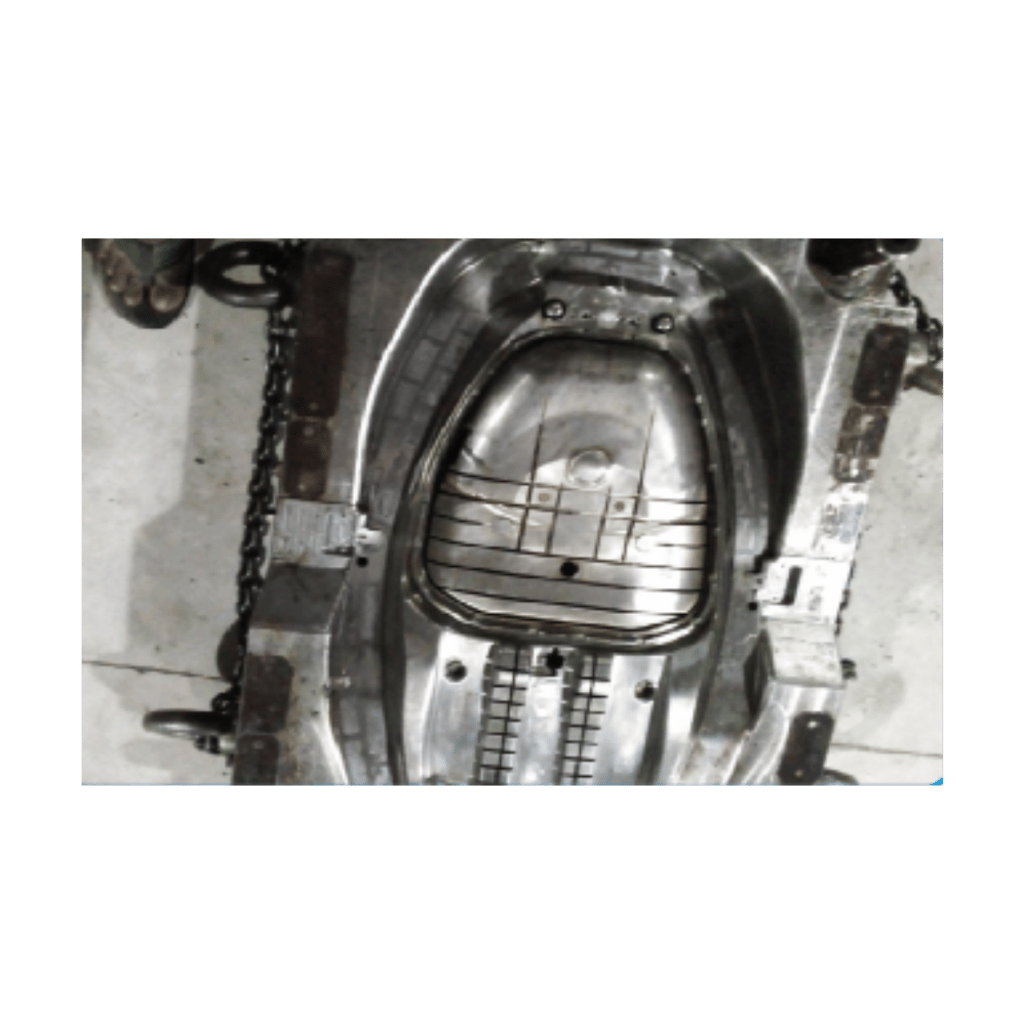

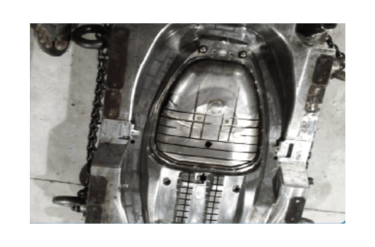

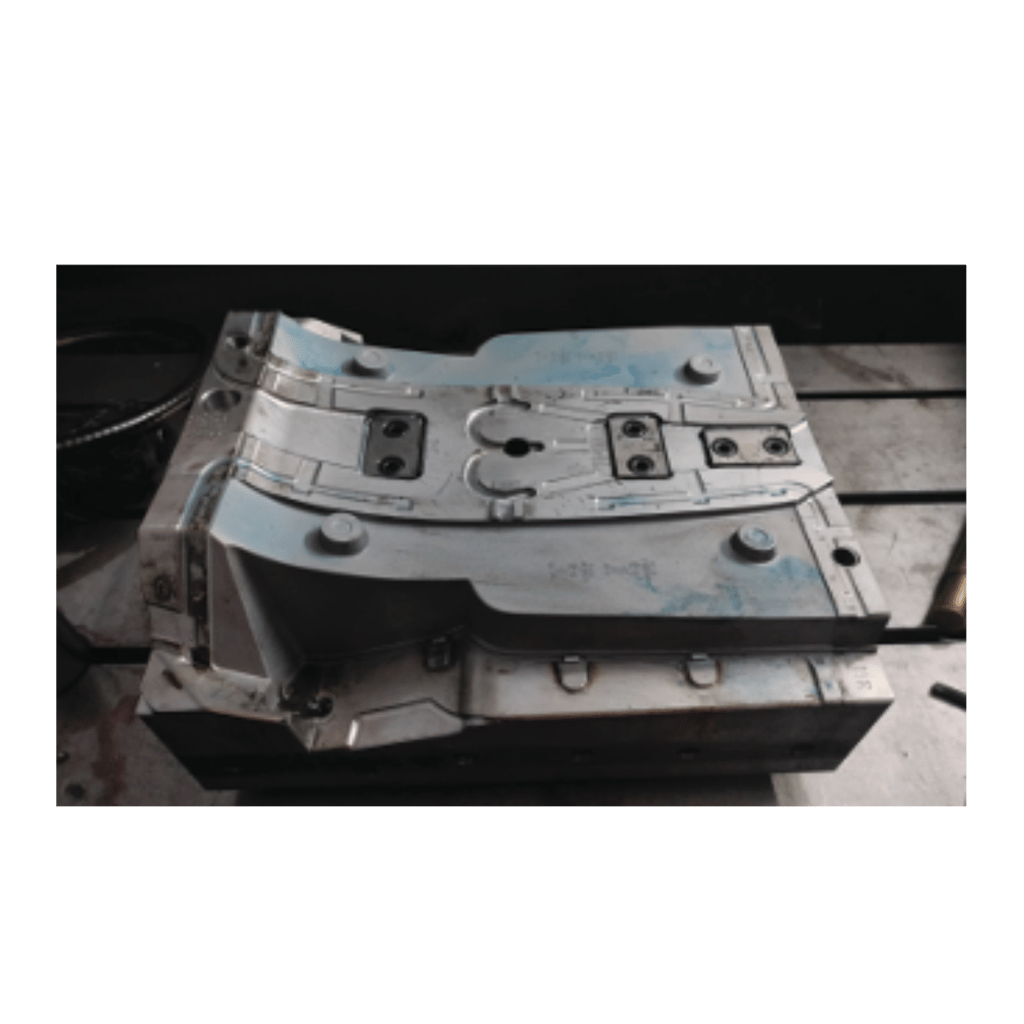

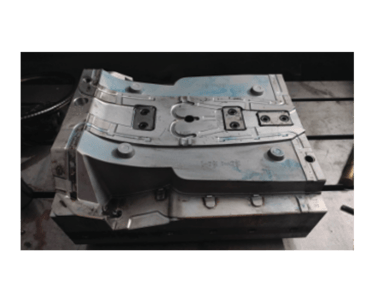

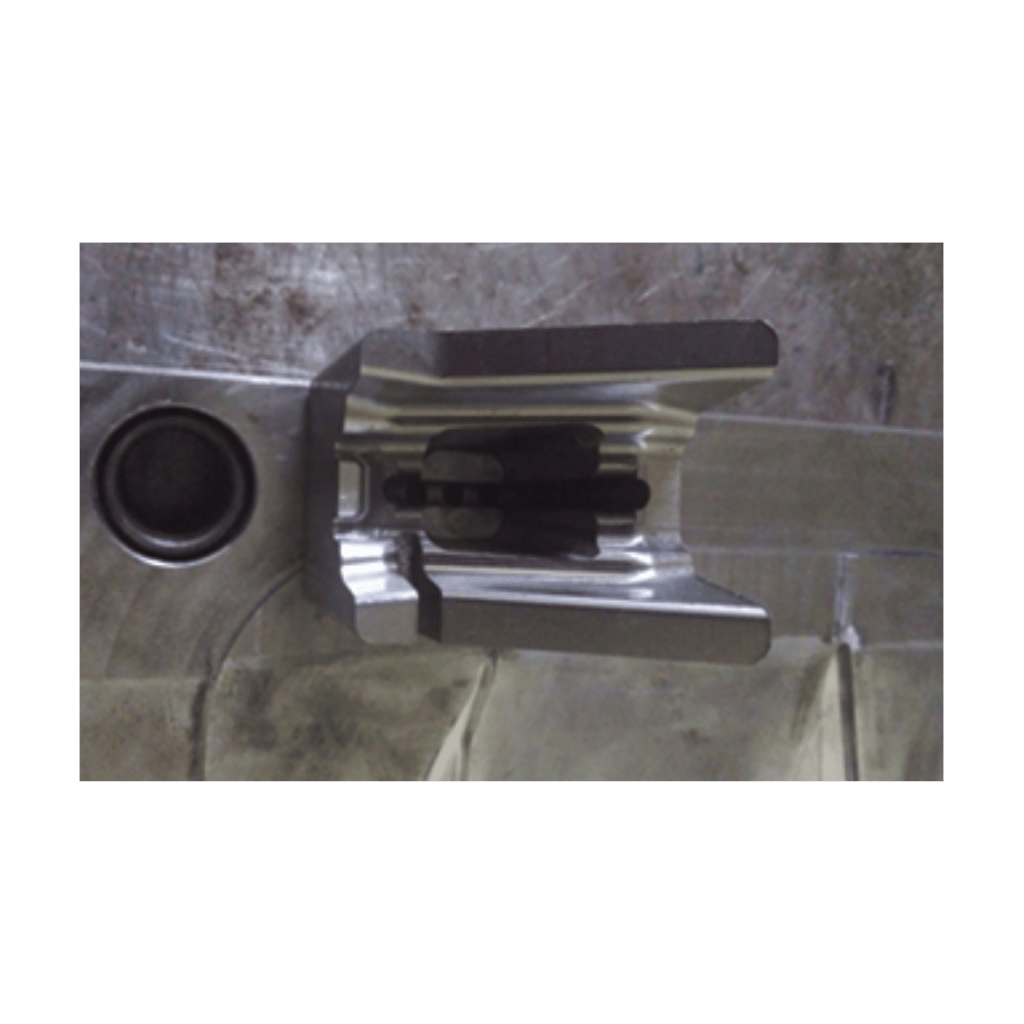

Mould inserts and cavities
Intricate tooling components
High-precision dies and features
