Injection Moulding 450 T
Built for Bigger Parts. Engineered for Strength
Our 450-ton injection moulding capability is designed to manufacture large and complex plastic components with exceptional strength, dimensional stability, and surface finish. It is ideal for applications that demand high-performance parts with consistent quality and durability.
Equipped with advanced control systems, this machine ensures precise material flow and uniform wall thickness. This helps maintain consistent production quality while minimizing defects, even for complex geometries.
Key Capabilities
Handles large moulds and complex designs
High strength and durability of components
Excellent dimensional stability
Uniform material distribution and finish
Technical Specifications
Machine: Electronica Injection Moulding Machine (450 Ton)
Clamping Force: 450 Tons
Shot Weight: 1,300 – 1,900 g
Screw Diameter: 70 – 80 mm
Peak Injection Pressure: 1,500 – 2,000 bar
Distance Between Tie Bars: 780 × 730 mm
Mould Thickness: 280 – 750 mm
Applications

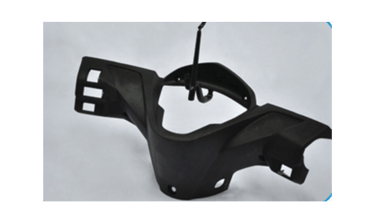

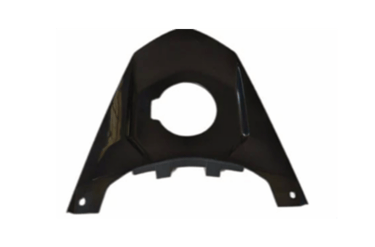

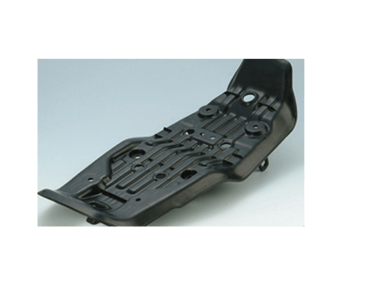

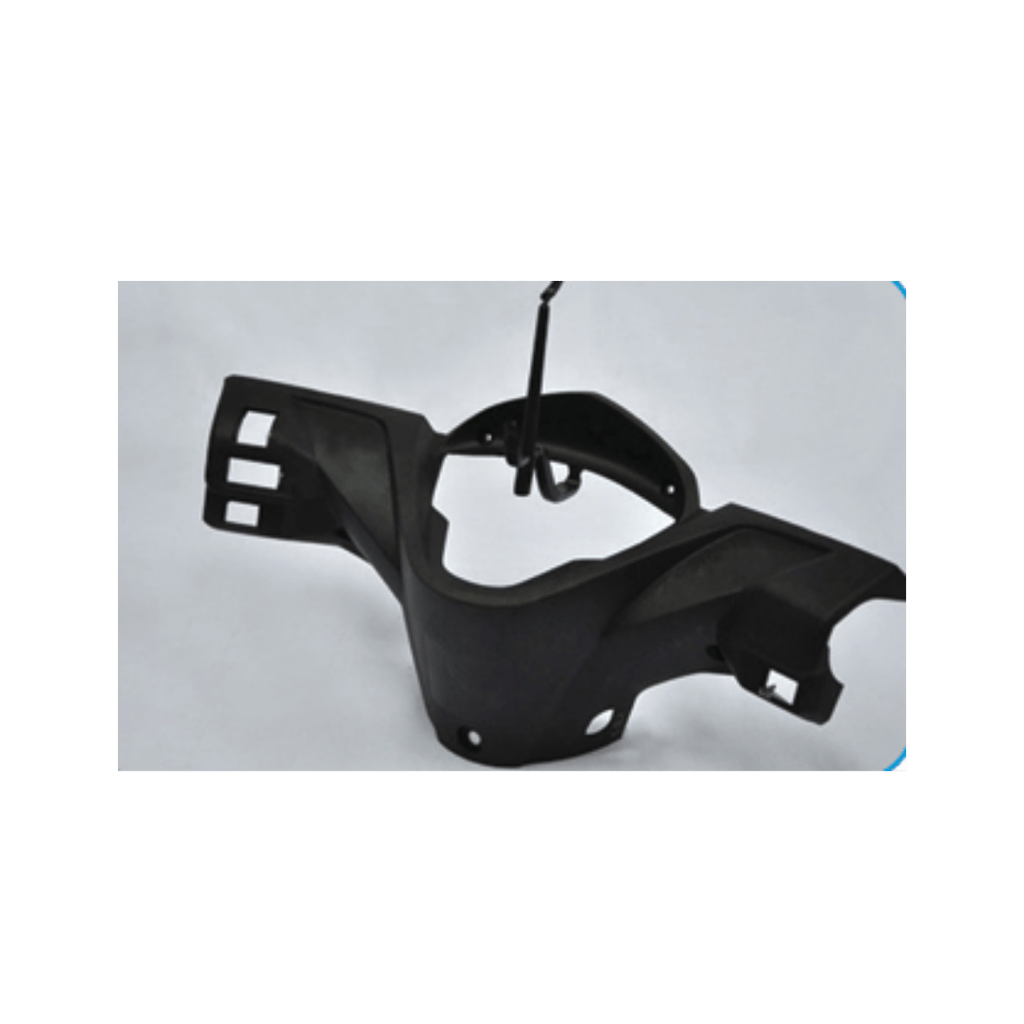

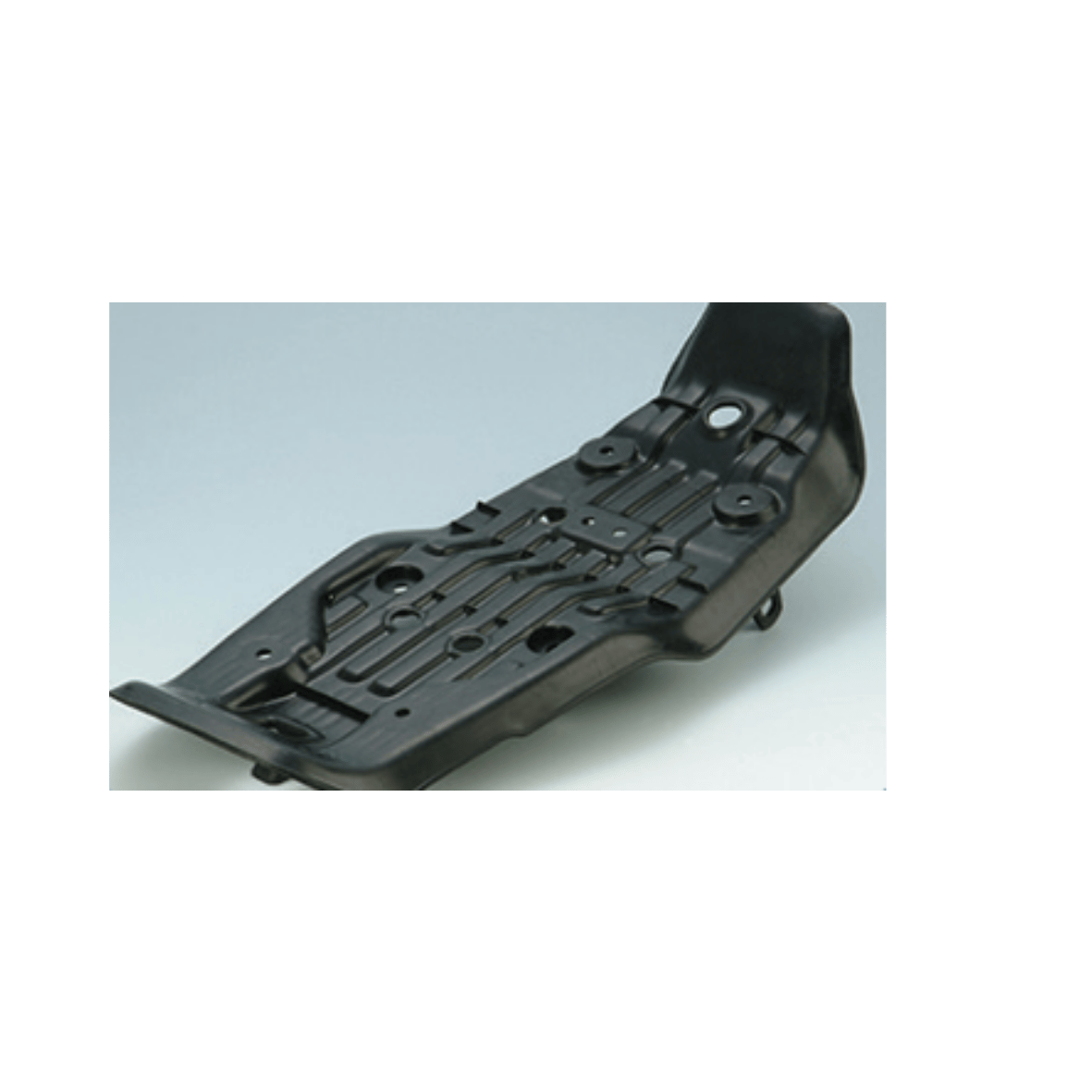

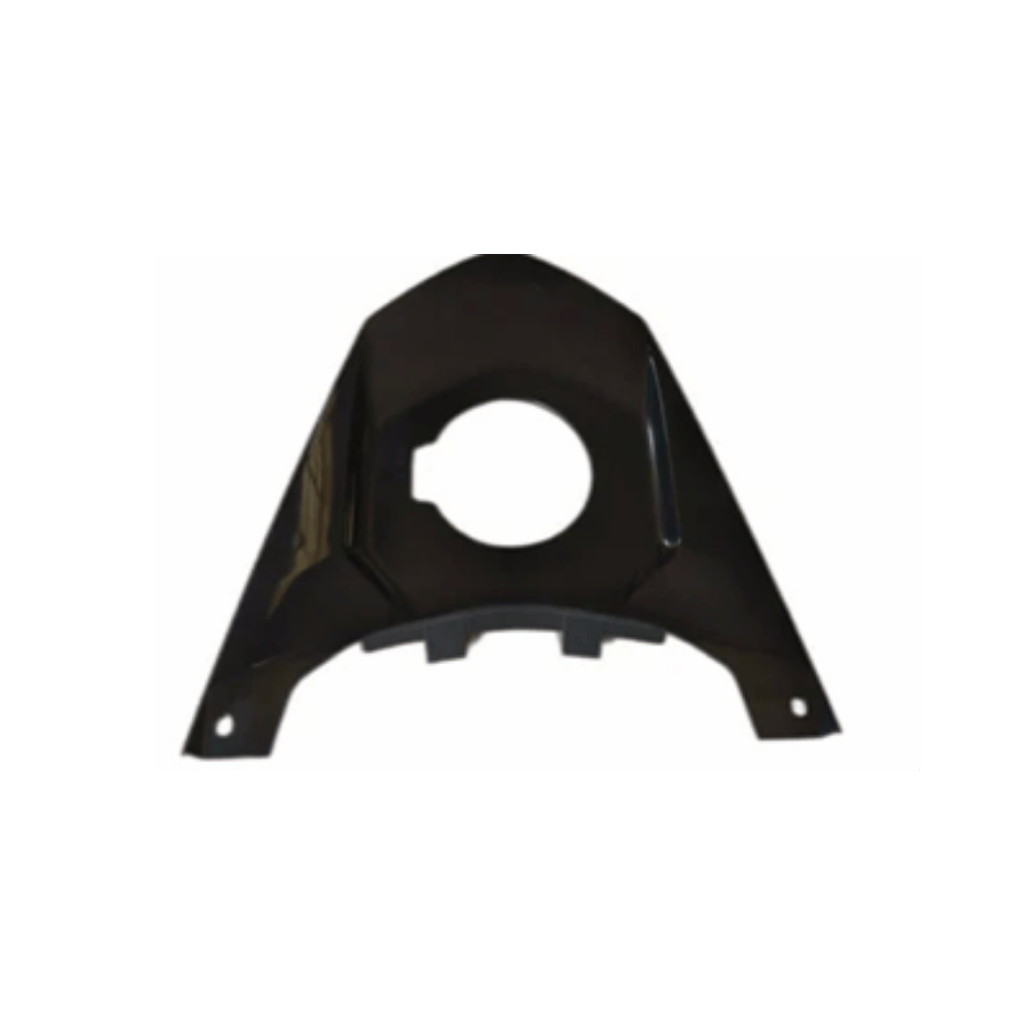

Automotive body parts
Industrial components
Large consumer products
